• Series BG3200/BG3300
    Differential pressure gauge NS 100/ 160 with switch function, high overload resistent
    Can be used as a differential pressure measuring system for high overload ranges with switch contact for universal use in measurement and control systems for indicating and monitoring pre-selectable minimum and/or maximum pressure values. Because of its robust design, it is suitable for use in tough environments.

    Differential pressure gauge NS 100/ 160, with diaphragm and switch function
    Differential pressure gauges with switch contact are suited for level measuring, filter monitoring and flow measuring under severe operating conditions.

    Differential pressure gauge NS 100/ 160, with diaphragm, working pressure up to 160 bar
    For high pressure ranges with particular requirements for overload protection. Universally suitable for measuring liquids and gases, and depending on design, for measuring aggressive media. Special models upon request. For use outdoors and in aggressive environments. Can be supplied in shock and shake proof design with liquid filling.

    Differential pressure gauge NS 100/ 160, diaphragm seal operation
    The differential pressure gauge is suitable for universal use in areas with special requirements for measuring gaseous, liquid and aggressive media. Application areas are level measuring, filter monitoring and flow measuring. Because of its robust design, the device is suitable for use in tough environments.

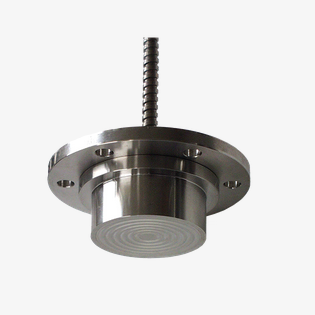

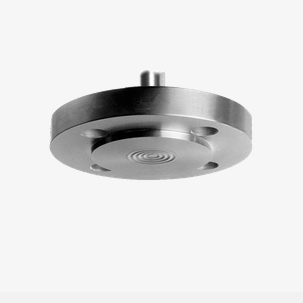

    Flange-type per EN and ASME, flush-mounted separating diaphragm
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The flange-type diaphragm seal is suited for measuring aggressive, highly viscous media and for high process temperatures.

    Design for low pressure applications, per EN and ASME
    Suitable for mounting to pressure transmitters, especially for low-pressure applications. Due to the loose clamping flange there are no mounting torque errors. The flange-type diaphragm seal is suited for measuring aggressive, highly viscous media and for high process temperatures.

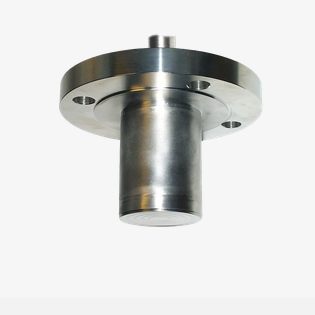

    Flange-type with diaphragm extension, general applications
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The flange-type diaphragm seal with diaphragm extension is suited for measuring aggressive, highly viscous media and for high process temperatures.

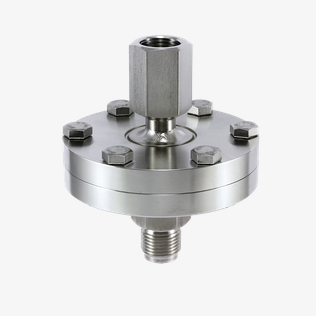

    Cell-type per EN and ASME, for aggressive, highly viscous media
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The cell diaphragm seal is suited for measuring aggressive, highly viscous media and for high process temperatures.

    Variable process connections, for aggressive, highly viscous media
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The diaphragm seal for variable connections is suited for measuring aggressive, highly viscous media and for high process temperatures.



    Saddle flange design for welding on to pipes, for highly viscous media
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The diaphragm seal is suited for measuring aggressive, highly viscous media and for high process temperatures.

    Screw-in thread per DIN 3852 for aggressive, hot and viscous media
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The screw-type diaphragm seal is suited for measuring aggressive, highly viscous media and for high process temperatures.

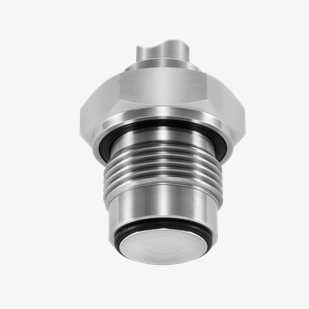

    Screw-in thread ASEPTIK, flush-mounted o-ring
    The diaphragm seal with flush-mounted o-ring is used mainly for dead-zone free pressure measurement. It is suitable for mounting to pressure transmitters and gauges. The rotatable connection (G3/4 A and G1 A) allows the measuring system to be positioned freely.

    Design for special applications, pulp industry, loose clamping flange
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters.

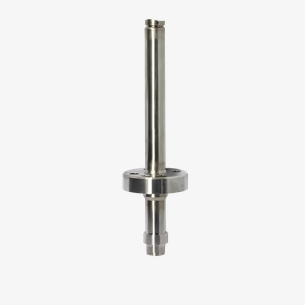

    Flange-type design for high temperature applications
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The diaphragm seal in flange-type design with diaphragm extension is suited for the special applications in plastics processing.

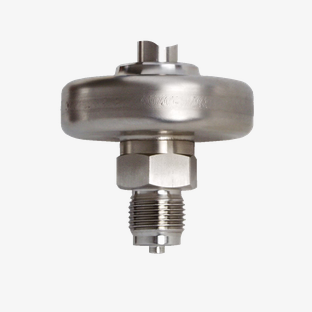

    Diaphragm seal – welded design
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The diaphragm seal welded design is suited for measuring aggressive media and for high process temperatures.

    Diaphragm seal, welded design with screw-in tread
    Suitable for mounting to bourdon tube pressure gauges and pressure transmitters. The diaphragm seal welded design is suited for measuring aggressive media and for high process temperatures. Especially for use in hydrogen applications a calculation tool is available with which it can be determined on the basis of the available process data whether gold plating of the diaphragm is necessary.
